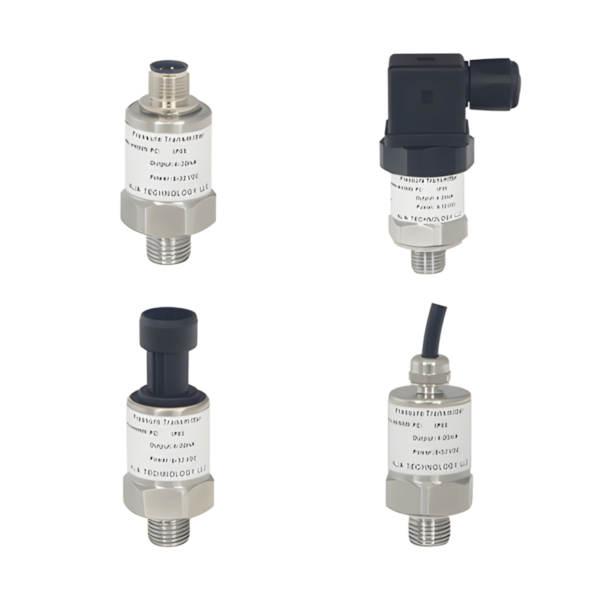

APT3100 Series
The APT3100 is a compact, high-performance pressure transmitter designed for a wide range of industrial applications. It offers measuring ranges from 0-0.1 to 0-600 bar, with output signals of 4-20 mA (2-wire) or 1-5 VDC. Featuring high stability, strong reliability, and anti-interference, it ensures accurate and efficient operation with a short response time. Its compact size makes it suitable for small spaces, while multiple configuration options allow customization to meet specific needs. With a high accuracy of ±0.45% of span, the APT3100 is an ideal solution for demanding measurement requirements.
Technical Specifications
| Process Fluid | Liquid, Gas, Vapor |
|---|---|
| Application | Absolute Pressure, Gauge Pressure, Vacuum |
| Measuring Range | 0-0.1~0-600 bar |
| Accuracy | +/-0.45% of span |
| Non-Linearity | ≤0.2% of span (BFSL) |
| Non-Repeatability | ≤0.05% of span |
| Stability | ≤+/-0.2% of URL for 1 year |
| Working Temperature | -40~85 °C |
| Compensation Temp. | -10~70 °C |
| Temp. Effect of Zero | Ranges≤0.25 bar : ≤0.4% FS / 10K |
| Temp. Effect of Span | ≤0.2% FS / 10K |
| Over Pressure Limit | 250% of Full Scale |
| Vibration Resistance | 20 g (20-2000 Hz) per IEC 60068-2-6 |
| Shock Resistance | 100 g (10 ms) |
| EMI / RFI Effect | Follow SAMA PMC 33.1 from 20-1000 MHz and for field strengths up to 30 V/m |
| Ambient Temperature | -20~70 °C |
| Humidity Limit | 0-95% Relative Humidity |
| Process Connection | G1/4" (Standard) |
| Pressure Port | 3.0 mm |
| Response Time | ≥1 ms |
| Output Response Time | ≤8 ms |
| Current Output | 4-20 mA (2-Wire) |
| Voltage Output | 1-5 VDC (3-Wire) |
| Power Supply Material | 9-32 VDC |
| Material | Connection: Stainless steel 304 |
| Electrical Connector | Cable Outlet: 2/3-Cable, Standard Outlet Cable 0.5 m |
| Protection Class | IP54 (Packard), IP65 |
| Intrinsically Safe | Ex ia IIC T6 (Standard) |
| Weight | Approx. 80 g |
