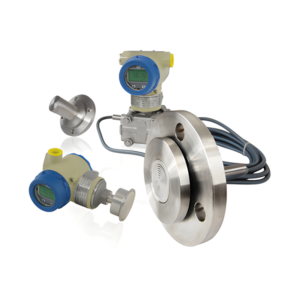

APT9000 Series
The APT9000 Series is a high-performance digital differential pressure transmitter tailored for industrial pressure measurement applications. With an impressive accuracy of 0.075% and long-term stability of 0.2% over two years, it ensures reliable and precise performance. The device features a rapid 200 ms output update time, supporting 4-20 mA signals with HART communication for seamless integration. User-friendly keypad-based parameter setting and automatic zero calibration via a press button enhance ease of use. Its explosion-proof and weatherproof housing ensures durability in harsh environments, and the optional flow display adds versatility to meet diverse application needs.
Technical Specifications
| Process Fluid - | Liquid, Gas, Vapor |
|---|---|
| Application | Differential Pressure, Gauge Pressure, Absolute Pressure |
| Measuring Range | 0-0.16 kPa~0-1.0 kPa (Minimum) |
| Turndown Ratio | 100:1 |
| Accuracy | +/-0.075% of span |
| Stability | +/-0.15% of URL for 2 years |
| Working Temperature | -25~95 °C |
| Max. Pressure | 40 MPa |
| Material | Flange / Adapter: Stainless Steel 304 / Stainless Steel 316 |
| Protection Class | IP67 (Standard) |
| Display | 5 Digits programmable & 0-100% Bargraph |
| Display Unit | Standard 22 different engineering unit |
| Keypad | 3 Internal keys for programming and output setting |
| Current Output | 4-20 mA (2-Wire) with HART signal (Compatible) |
| Power Supply | 9-36 VDC |
| Damping | 0-32 Seconds |
| Response Time | 100 ms |
| Mounting | Bracket on 2" Pipe |
| Humidity Limit | 0-100% Relative Humidity |
| Zero Calibration | Automatic zero calibration by press-button |
| Cable Entry | M20 Conduit Threads / 1/2" NPT (Female) |
| Temperature Effect | +/-0.18%~+/-0.5% of span per 20 °C |
| Vibration Effect | +/-0.05% of URL per g to 200 Hz in any axis |
| EMI / RFI Effect | Follow SAMA PMC 33.1 from 20-1000 MHz and for field strengths up to 30 V/m |
| Process Connection | 1/4"-18 NPT |
| Ambient Temperature | -25~80 °C |
| Dimensions | 102 mm (W) * 188 mm (H) * 130 mm (D) |
| Weight | 3.5 kg |
