ARL5000 Series

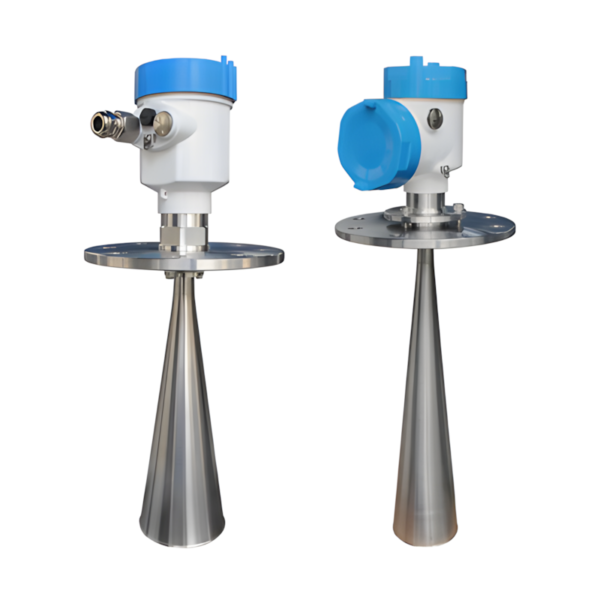

The ARL5000 Series is a high-frequency radar level transmitter designed for non-contact level measurement in challenging environments. Utilizing 26 GHz microwave pulses, it delivers stable and accurate measurements with a range of up to 70 m (230 ft). The transmitter’s anti-interference capabilities make it unaffected by noise, vapor, dust, foam, or vacuum, ensuring reliability in harsh conditions. With a smaller beam angle and focused energy, it enhances radar echo and reflection on inclined solid surfaces. Its non-contact design eliminates wear and pollution, while its advanced microprocessor and optimized antennas ensure superior signal analysis and measurement accuracy of ±3 mm. Simple structure and easy installation make it ideal for various industrial applications.
Technical Specifications
| Measure Principle | Radar |
|---|---|
| Measure Range | 0-70 m |
| Display | 4 Digit LCD with Bargraph |
| Accuracy | +/-3 mm…+/-15 mm |
| Blind Area | The end of antenna |
| Beam Angle α | 20° / 18° / 14° / 12° / 8° / 6° |
| Measuring Interval | >1s (Dependent on configuration setting) |
| Adjustment Time | >1s (Dependent on configuration setting) |
| Ambient Temperature | -40~80 °C |
| Relative Humidity | 0-95% RH |
| Permittivity DK | >1.4 |
| Ambient Temp. Effect | 3 mm / 10 K, Max. 10 mm |
| Gas Pressure Effect | 0.22 % (Air: 10 bar / 20 °C) |
| Material | Antenna: PTFE / PFA / S.S. 316L |
| Process Connection | PP / PTFE / S.S. 304 / S.S. 316L / S.S +coated |
| Protection Class | IP67, Explosion Proof, Ex d IIC T6, Intrinsically Safe, Ex ia IIC T6 |
| Keypad | 4 internal keys for programming |
| Unit | ft, in, m, cm, mm |
| Process Temperature | -40~130 °C (Standard) |
| Process Pressure | -1.0~40 bar G (Max. ) |
| Max. Cable Length | 8 m (for single cavity housing) |
| Power Supply | 16-26 VDC (2-Wire) |
| Power Consumption | 22.5 mA / 1W (Max. ) |
| Current Output | 4-20 mA (2-Wire, 4-Wire) |
| Resolution | 1.6 μA |
| Alarm Current | No change / 20.5 mA / 22 mA / 3.9 mA |
| Damping | 0-40 s |
| Communication | HART signal (Compatible) (Standard) |
| Data Storage | Operation parameters and totalization date are stored by EEPROM for more than 10 years |
| EMI / RFI Effect | Follow SAMA PMC 33.1 from 20 to 1000 MHz and for field strengths up to 30 V/m |
| Vibration Resistance | 20-2000 Hz, 1 (m/s2)2/Hz |
| Cable Entry | Standard: M20, Option: 1/2" NPTF |
