D101
Datasheet

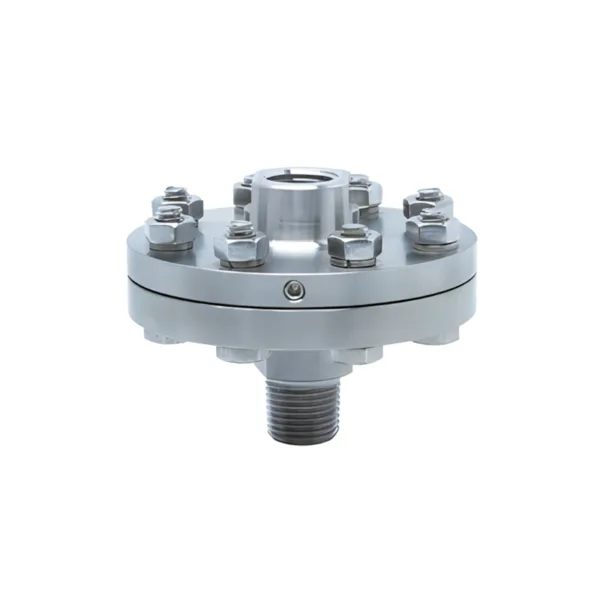

The diaphragm seal features forged chambers and a demountable design, allowing for easy cleaning or washing. It includes a laser-welded diaphragm and offers a wide selection of materials for the diaphragm and lower housing, ensuring compatibility with various applications.
It is suitable for liquid and gaseous mediums, corrosive environments, oil and gas applications, chemical and petrochemical processes, as well as water and wastewater systems.
Technical Specifications
| Suitable ranges | -1 to 400 bar |
|---|---|
| Bottom chamber | 316L SS (Monel, HC276, Alloy 625, PTFE lined option) |
| Diaphragm | 316L SS (Monel, HC276, Alloy 625, Tantal, PTFE option) |
| Process connection size std | ½” NPT M, ½” BSP M |
